News two new arrival screen printing machine

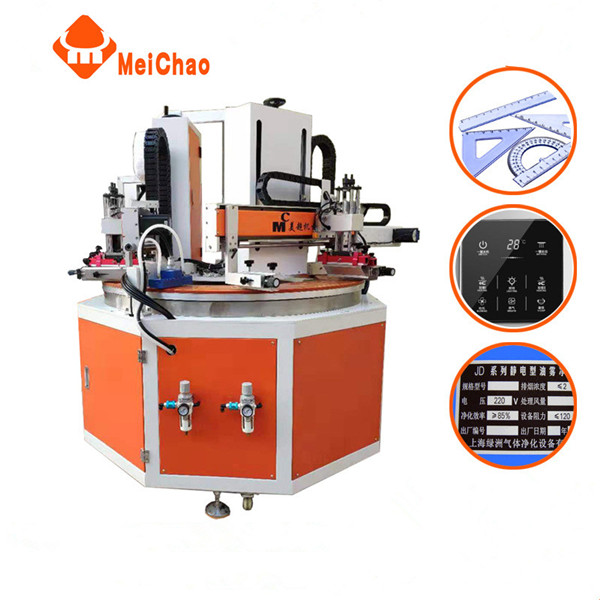

New arrival customized screen printing machine
1. specification
Model no.：MC-04HG
Printing Area：200*300mm
Printing speed：7000pcs/h
Power：110/220v 50w
Size: 100*115*167cm
Weight：420KG
2. Application
This is a high precision automatic stationery ruler screen printing machine (full automatic rule), the use of Taiwan mechanical CAM divider to set up a high-speed rotating table, can be high-speed rotation without any vibration, automatic loading and unloading, in the printing at the same time to release the work, reduce the equipment stop time, a time to print 4 rulers, can print 6000-7000 rulers per hour. Mainly suitable for ruler, equilateral triangle ruler, long triangle ruler, measuring Angle ruler and other stationery products mass screen printing.
3. Technology Parameter
|
12. The Angle of the scraper/reinker can be adjusted |
|
|
2. Taiwan LSK linear guide rail is adopted to ensure high precision of the machine |
13. The position of the net frame can be adjusted front and back, around, level and height |
|
3. Adjustable position table, X, Y rotation direction position adjustment |
14. Taiwan CEC oil buffer is equipped up and down to eliminate printing vibration |
|
4. High strength large flow vacuum tube adsorption |
15. machine running speed is fast, stable, low noise |
|
5. All kinds of stationery ruler do not need to make fixture, quick change |
16. LCD control panel, a variety of printing mode selection, easy to operate |
|
6. printing speed：6000-7000pcs/hr |
17. left and right stroke：350mm |
|
7. No material does not print, no product does not print, save the trouble of printing and washing the net |
18. Up and down stroke：100mm |
|
8. Automatic loading and unloading, UV drying |
19. Disk Area：600mm |
|
9.Maximum printing area：200*300mm |
20. Maximum height of the plate：50mm |
|
10. All casting aluminum body, metal painting surface |
21. Voltage：220V，50-60MHZ |
|
11. Left and right stroke adjustable, Taiwan photoelectric switch limit |
22. Suitable for flat products below 30CM triangle ruler, protractor and related flat LOGO printing, mass printing |
